Winding Conductor are the lifeline of a Transformer, It is the medium through which electricity flows from the main source to the load. These conductors are made in copper and aluminium which helps the current to flow freely and results in low voltage losses of the transformers.
With more than 20 Years of work experience , we at Goyal Transformer provide our customers with the best quality conductors , which ease the current flow within the transformers helping them to work more effectively and economicaly.

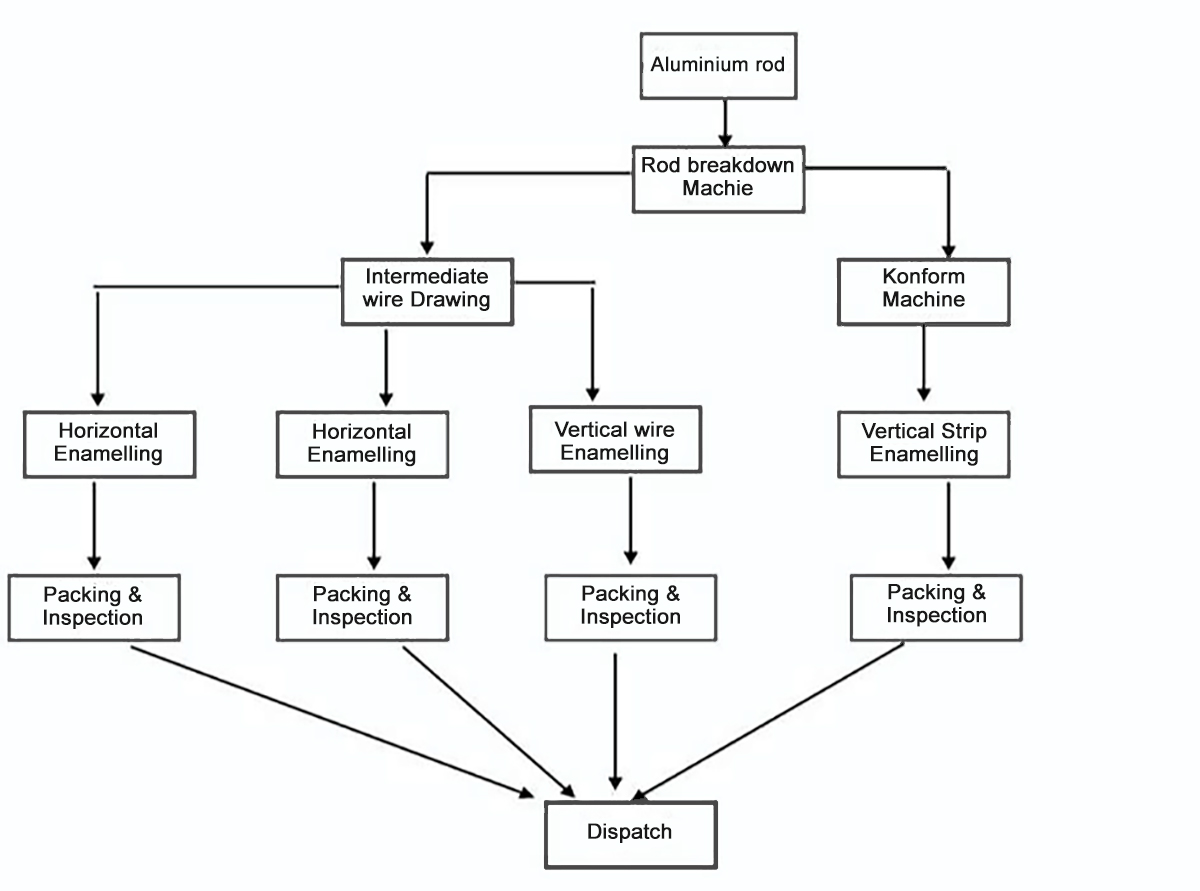

1. Imported Machines with Spray Die technology with the following benefits
- Even/ Smooth varnish surface
- No grains residue on the surface.
- No pin holes observed
- Higher BDV
2. The company already has more than 20 years of experience in production of Super enamelled aluminium wires and strips and DPC aluminium. wires, hence the technology Is not new to the company and it already has the expertise to produce high quality product.
3. In house laboratory with state of the art equipment's for testing as per IEC and IS standards to make sure our customers receive high quality products.
4. We use high quality EC grade Aluminium rod from reputed manufacturers in the world as well as high quality insulating Varnish for our winding wire division which makes our final product of high quality.
- For EC grade Aluminium Rod : HINDALCO , VEDANTA , BALCO , Imported
- For Insulating Varnish : Elantas Beck India ltd , Fupao Chemical Co. Ltd. (Taiwan)
5. Single reels up to 30 KG.
Characteristic Features

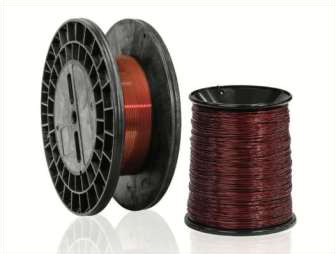

Diameter : 0.5 Mm To 5 Mm
Insulation class : Modified Polyester ( Class130 and 155) ,
Hermetic (Class180) , Dual coat ( Class 200)
Conductor : EC Grade Aluminum/Copper
Spools : PT 35 to PT 200
Applications
Used in Winding for distribution transformers, motors and Electronic appliances such as AC's , TV , refrigerator and fans.
Packing Spools
PT 25, PT 45, PT 60, PT 90, PT 200 , PT 270
Characteristic Features

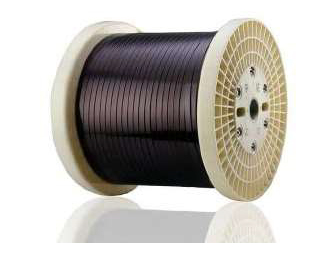

Size : 10 Sq. Mm To 80 Sq. Mm
Insulation Class : Modified Polyester ( Class130 and
155), Hermatic (Class180) , Dual coat ( Class 200)
Conductor : EC Grade Aluminum/Copper
Applications :
Used in Winding for distribution transformers, motors and Electronic appliances such as AC's , TV , refrigerator and fans.
Packing Spools
400 mm , 450 mm , 500 m
Characteristic Features

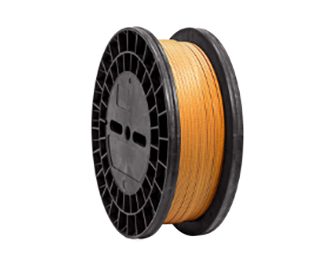

Diameter : 0.5 mm to 5 mm
Conductor : EC Grade Aluminum/Copper
Covering : Electrical grade insulation Kraft / crepe paper.
Applications
Mainly used as insulation in oil cooled transformers as leads and shields.
Variant
1. Double paper covered
2. Triple paper covered.
Packing Spools (Cylindrical)
PT 25, PT 45, PT 60, PT 90
